AGS-4920
ACCELERATING CAPABILITIES AND POSSIBILITIES

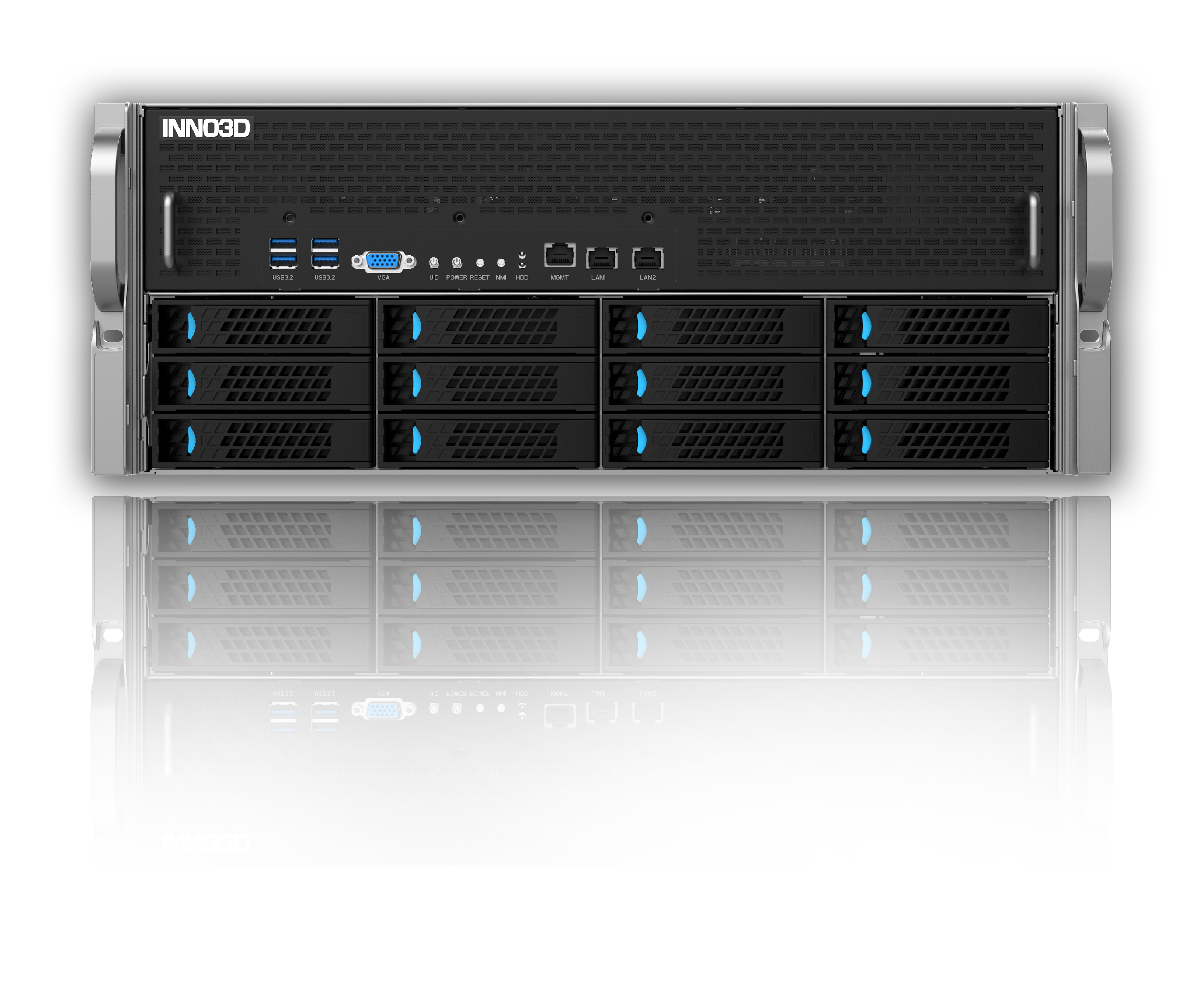

4U Rack Mount GPU Server AGS-4920

4U Rack Mount GPU Server AGS-4920
INNO3D GPU SERVER

4U Rack Mount GPU Server

INNO3D Servers harness the parallel processing prowess of GPUs to empower enterprises in enhancing their capabilities across High-Performance Computing (HPC), data analytics, genomics, 3D modelling and imaging, machine learning, simulations, deep learning, AI, and other mission-critical requirements. These high-performance servers are tailored to excel in specialized AI training, supervised fine-tuning, AI inference, and beyond, offering augmented performance for diverse operational needs.

Barebone Server


INNO3D 4U Dual AMD CPU Rack Mount GPU Server

SKU: AGS-4920

  • 4th Generation AMD® EPYC™ 9004 series Processors
  •  Dual processor, LGA 6096
  • 12-Channel RDIMM/RDIMM-3DS DDR5 Memory per processor, 24 x DIMMs
  • Dual 1Gb/s LAN support (RJ45)
  • 10 x PCIe x16 slots expansion slots
  •  4+1 2000W 80+ Platinum redundant power supply
  • Up to 10 dual-slot GPU support



read more

Additional Features

UP TO 10 GPU READY

Offering high-performance computing capabilities for a wide range of demanding applications.
*GPU sold separately. Up to 10 GPU dual-slot GPUs ready

MODULAR DESIGN

Installing or upgrading components and maintaining server products are more easily accomplished with a streamlined modular design for easier access to internal hardware.
*Available on select models

HIGH SPACE TO PERFORMANCE RATIO

A smartly designed chassis provides more space when compared to those of similar size and form factor, providing up to 10 full-length full-height, dual-slot graphics cards to offer a greater space to performance advantage.
*select models

PCIe DIRECT DRIVE

Enabling flexible Server use scenarios on a wide scale:
Storage Focus
Prioritize PCIe connections to storage
Compute Focus
Prioritize more PCIe bandwidth for maximum GPU capabilities
Multi-server Focus
Enable more PCIe bandwidth towards high-speed network connectivity between Servers for even more computational performance


POWERFUL COOLING

Equipped to cool with powerful air coolers or high-performance liquid-cooled hardware, the streamlined design of INNO3D GPU Servers maximizes efficient heat dissipation to provide greater cooling to the entire machine, especially critical components like the CPU and GPU to enable higher and longer sustained performance.
*The number and performance equipped fans may vary by model

REDUNDANT POWER

With support with up to 4+1 2000W 80 PLUS Titanium redundant power supplies, INNO3D GPU Servers can further maximize efficiency to provide uninterrupted operation, reduce operating costs, and enable easier servicing.

DUAL ROM
ARCHITECTURE

If the ROM that stores the BMC and BIOS fails on INNO3D GPU Servers, the system will automatically reboot with the backup for uninterrupted operation. Once the primary BMC is updated, the ROM of the backup BMC will automatically update the backup through synchronization.
*Available on select models

TRUSTED PLATFORM
MODULE 2.0 READY

INNO3D GPU Servers include a TPM header to support an optional TPM 2.0 module for hardware-based authentication and sensitive data storage.
*Available on select models


FROM HIGH-PERFORMANCE
COMPUTING WORKSTATIONS
TO ENTERPRISE SERVER

Handle standard small & medium workloads with the right-sized performance in a Server grade Tower Workstation or take on business-critical demands with scalable rack-mounted GPU 4U Servers.


 inno3d_logo

LP_2024_INNO3D_GPU_server_side_banner_02.jpg Alternative text LP_2024_INNO3D_GPU_server_side_banner_1080x1920_02.jpg

Nvidia-omniverse-logo

3D design collaboration and simulation and more, NVIDIA Omniverse™ is a computing platform that enables individuals and teams to develop Universal Scene Description (OpenUSD)-based 3D workflows and applications. From concept design for animated movies, to industrial digital twins of factories, Omniverse transforms the way teams approach building and operating metaverse applications.

nvidia-omniverse-creator-bb580_440-d.jpg LP_2024_INNO3D_GPU_server_side_banner_mobile01.jpg



CREATE IN 3D FASTER
THAN EVER

Sync your favorite creative apps to Omniverse and USD and work with your 3D data in a unified view.

nvidia-omniverse-developer-bb580_440-d.jpg LP_2024_INNO3D_GPU_server_side_banner_mobile02.jpg

AUGMENTED BY AI

Build custom extensions, tools, and microservices to
accelerate your 3D workflows, generate synthetic data,
and build industrial metaverse applications.

nvidia-omniverse-enterprise-bb580_440-d.jpg LP_2024_INNO3D_GPU_server_side_banner_mobile03.jpg





POWER INDUSTRIAL
DIGITALIZATION

Break 3D data silos, unify large enterprise teams, and
enable the next wave of 3D and simulation workflows.

INTEL® XEON® SCALABLE PROCESSORS

Designed to accelerate performance across fast-growing workloads, Intel Xeon Scalable Processors have powerful built-in accelerators to help improve performance efficiency for emerging workloads like AI and deep learning applications. These built-in accelerators can also ensure maximum efficiency in the core and power utilization, optimizing operational sustainability.

intel-logo

Intel® Advanced Matrix Extensions
(Intel® AMX)

To boost AI inference and training with 2D tiled operation

Intel® QuickAssist Technology

For faster encryption and bulk data compression

Intel® In-Memory Analytics Accelerator
(Intel® IAA)

To boost database performance with lower memory bandwidth

Intel® Data Streaming Accelerator
(Intel® DSA)

To speed-up data movement

Intel® Dynamic Load Balancer
(Intel® DLB)

To optimize queue scheduling and packet processing









AMD EPYC™ PROCESSORS POWERING THE NEXT GENERATION OF SERVER ARCHITECTURE AND ENERGY EFFICIENCY

The new family of EPYC processors deliver even better CPU performance and performance per watt and do so on a platform with 2x the throughput of PCIe 4.0 lanes that also has support for 50% more memory channels. For this new platform, ZOTAC 4th Gen AMD EPYC supported Servers can get the most out of EPYC-based systems that support fast PCIe Gen5 accelerators and Gen5 NVMe drives, in addition to support for high performant DDR5 memory.

EPYC-logo

4th Gen AMD EPYC Processors for SP5 Socket



5nm architecture

Compute density increased with more transistors packed in less space

128 CPU cores

Dedicated cores and targeted workloads for Zen 4c & Zen 4 cores

Large L3 cache

Select CPUs have 3x or more L3 cache for technical computing

SP5 compatibility

All 9004 series processors are supported on one platform

DDR5 memory

Increased memory throughput and higher DDR5 capacity per DIMM

PCIe 5.0 lanes

Increased IO throughput achieving 128GB/s bandwidth in PCIe x16 lanes




 inno3d_logo

Privacy Policy | Contact Us



DISCLAIMER

The information presented in this page is for informational purposes only and may contain technical inaccuracies, omissions and typographical errors.  The information contained herein is subject to change and may be rendered inaccurate for many reasons, including but not limited to product and specification changes, component and motherboard version changes, new model and/or product releases, product difference between differing manufacturers, software changes, BIOS flashes, firmware upgrades, or this like.  InnoVISION assumes no obligation to update or otherwise correct or revise this information.  However, InnoVISION reserves the rights to revise this information and to make changes from time to time to the content hereof without obligation of InnoVISION to notify any person of such revision or changes.
InnoVISION makes no representations or warranties with respect to the contents hereof and assumes no responsibility for any inaccuracies, errors or omissions that may appear in this information.




Copyright Notice

© Copyright 2024, InnoVISION Multimedia Limited.  All rights reserved.  The INNO3D®, INNO3D Brutal by Nature Logo, are the registered and/or trademarks of InnoVISION Multimedia Limited in Asia, Europe and / or other countries.   NVIDIA®, NVIDIA logo are registered and/or trademarks of NVIDIA Corporation in the United States and other countries.  All other trademarks and registered trademarks are the property of their respective owners.



Datasheet:
Datasheet
Computing System
Computing System
Reference Number

Barebone Package: AGS-4920
Chassis: ASC-R832U4
Motherboard: ASB-AM42U4

Form Factor

4U rack mount server

Motherboard

PROPRIETARY
430.02mm x 350.27mm / 16.93in x 13.79in (L x W)

CPU

4th Generation AMD® EPYC™ 9004 series Processors
AMD® EPYC™ 9004 series Processor support
AMD® EPYC™ 9004 series processors with AMD® 3D V-Cache™ Technology
up to 360W TDP

Socket

2 x LGA 6096 (Socket SP5)

Chipset

System on Chip

Memory

DDR5, 24 x RDIMM / RDIMM-3DS DIMM slots
RDIMM modules (up to 96GB -2R)
RDIMM-3DS modules (up to 512GB - 2S8Rx4)
12-channel per processor
1.1V modules, 4800MHz memory speed

Graphics:
Graphics
Video

Integrated Aspeed® AST2600
1920x1200@60Hz, DDR4 SDRAM

Storage:
Storage
Storage

Max. 32 x SATA-3 6Gbps HDD / SSD ports (4xMICO connectors) - Share with 2xPCIe x16 Slots
2 x M.2 NVMe PCIe Gen3 x4 or SATA-3 6Gbps SSD slot (2280/22110, M-key)

RAID

N/A

I/O Ports:
I/O Ports
LAN

2 x 1Gbps Intel LAN ports (I350)
1 x Dedicated management port (BMC)

Expansion Slots

10 x PCIe 5.0 x16 slots (FH Double width slot) ,
- Maximum 10 Dual Slot PCIe Gen 4 GPU support

Front I/O

12 x, 3.5/2.5-inch, Hot-Pluggable SATA-3 6Gbps Drive Bays (HDD/SSD) or
8 x 3.5/2.5-inch, Hot-Pluggable SATA-3 6Gbps Drive Bays (HDD/SSD) +
4 x U.2 NVMe PCIe Gen 3 SSD drive Bays
(Share with one PCIe Gen5 x 16 Slot)
4 x USB 3.2 Gen1 (USB Type A)
1 x VGA (DB15)
2 x 1Gbps Ethernet ports (RJ45)
1 x Dedicated IPMI Management Port (RJ45 MLAN)
1 x UID button with LED
1 x System Reset Button
2 x HDD / System Fault LEDs
1 x NMI Button

Backplane I/O

N/A

Mechanical:
Mechanical
Power Supply

4+1 2000W 80+ Platinum redundant power supply

Cooling

8 x hot plug fans - 80x80x38mm (Max 10,000 rpm with Shock absorber) - Internal
5 x hot plug fans - 80x80x38mm (Chassis rear panel mount)

Operation Properties

Operating temperature: 10°C to 35°C
Operating humidity: 8%-80% (non-condensing)
Non-operating temperature: -40°C to 60°C
Non-operating humidity: 20%-95% (non-condensing)

Product Dimensions

L x W x H
850mm x 438.4mm x 177mm / 33.46 in x 17.26 in x 6.97 in

Product Weight

N/A

Miscellaneous:
Miscellaneous
OS Compatibility

Windows Server 2022 / 2019 (x64)
Red Hat Enterprise Linux 9.2 / 9.1 / 9.0 / 8.7 / 8.6 (x64)
SUSE Linux Enterprise Server 15SP4 (x64)
Ubuntu 22.04.3 / 22.04.2 / 22.04.1 / 22.04 LTS (x64)
VMware ESXi 8.0 Update 1 / 7.0 Update 3i
Citrix Hypervisor 8.2 LTSR CU1

TPM

1 x TPM header with SPI interface
Optional TPM 2.0 Module

Contents

1 x full barebone unit*
5 x A/C power cords

*CPU, CPU cooler, GPU, Memory, Storage are not included in the barebone system

Available SKU:
Available SKU
Available SKU
N/A
