bg
C30703-08D6X-1710VA38

INNO3D GEFORCE RTX™ 3070 ICHILL X3

jumbotron
x3
DirectX Icon
INNO3D GEFORCE RTX 3070 ICHILL X3
GEForece Icon
INNO3D GEFORCE RTX™ 3070 ICHILL X3

INNO3D® GEFORCE RTX 3070 ichill_logo X3 JOINS

THE RTX 30 SERIES LINE-UP

INNO3D® introduces its new INNO3D® GeForce RTX™ 30 Series with an exciting range of cutting-edge fans including the iCHILL X3 with programmable RGB that boasts large triple 9cm fan. Specifically designed to be an ultimate cooling solution and with factory overclock so that all you have to do is plug and play your favourite games straight from the box.

GEFORCE RTX 30 SERIES

THE ULTIMATE PLAY

The new NVIDIA GeForce RTX 30 Series GPUs, the 2nd generation of RTX, features new RT Cores, Tensor Cores and streaming multiprocessors, bringing stunning visuals, amazingly fast frame rates, and AI acceleration to games and creative applications. Powered by the NVIDIA Ampere architecture, which delivers increases of up to 1.9X performance-per-watt over the previous generation, the RTX 30 Series effortlessly powers graphics experiences at all resolutions, even up to 8K at the top end. The GeForce RTX 3090, 3080 and 3070 represent the greatest GPU generational leap in the history of NVIDIA.

NVIDIA AMPERE ARCHITECTURE

Ampere

2ND GENERATION

RT CORES

2X THROUGHPUT

3RD GENERATION

TENSOR CORES

UP TO 2X THROUGHPUT

NEW

SM

2X FP32 THROUGHPUT

INNO3D GeForce RTX 3060 Twin X2 - 05

DLSS AI ACCELERATION

MAX FPS. MAX QUALITY. POWERED BY AI.

NVIDIA DLSS is groundbreaking AI rendering that boosts frame rates with uncompromised image quality using the dedicated AI processing Tensor Cores on GeForce RTX™. This gives you the performance headroom to crank up settings and resolutions for an incredible visual experience. The AI revolution has arrived to gaming.



*Footage captured on RTX™ 2060 at 3840x2160 max settings.

ADDITIONAL FEATURES AND BENEFITS

GEFORCE EXPERIENCE

Capture and share videos, screenshots, and livestreams with friends. Keep your drivers up to date and optimize your game settings. GeForce Experience lets you do it all. It’s the essential companion to your GeForce graphics card.

GAME READY DRIVERS

Get the highest level of performance and the smoothest experience possible, from the moment you start playing.

DIRECTX 12 ULTIMATE

Developers can now add even more amazing graphics effects to Microsoft Windows-based PC games. GeForce RTX™ graphics cards deliver advanced DX12 features like ray tracing and variable rate shading, bringing games to life with ultra-realistic visual effects and faster frame rates.

NVIDIA ANSEL

Turn your screenshots into art with this powerful in-game photo mode that captures 360, HDR, and super-resolution photos.

VIRTUAL REALITY

The highest performance graphics deliver the smoothest, most immersive VR experiences.

NVIDIA G-SYNC®

Get smooth, tear-free gameplay at refresh rates up to 360 Hz, plus HDR and more. This is the ultimate gaming display and the go-to equipment for enthusiast gamers.

INNO3D GEFORCE RTX 3070 ICHILL X3

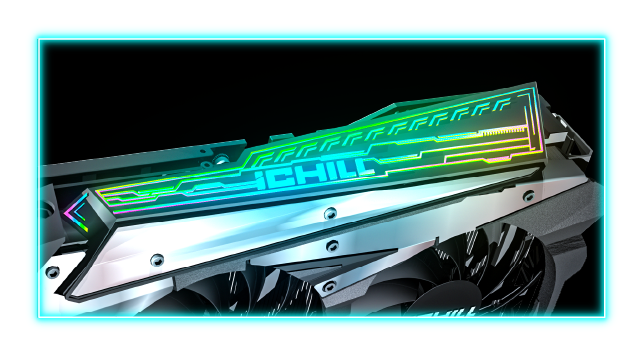

PROGRAMMABLE RGB

With built in MCU control and supports Aura Sync, Mystic Light and RGB Fusion. This RGB plate mounted this very unique asymmetric cooler design will give your system build an edgy and dynamic look.

public://2024-01/Asset 6_7.png

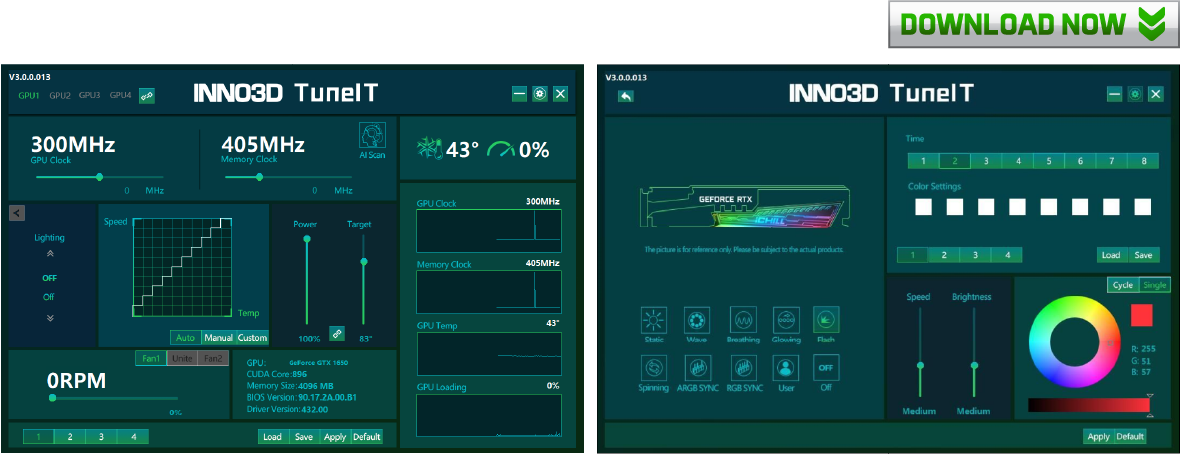

TUNEIT SOFTWARE FOR OC AND RGB CONTROL

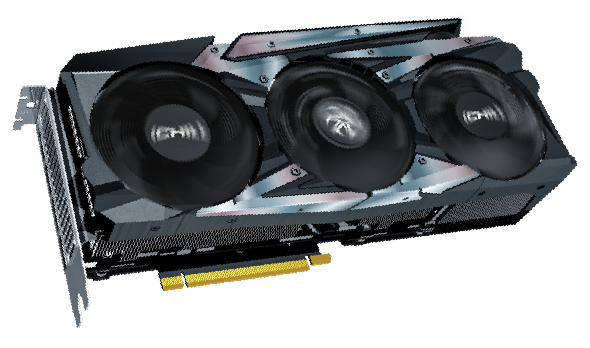

HEATSINK DESIGN

NEW COOLING SOLUTION

Triple fan with 9cm Scythe blades to maximise airflow and optimised to operate in low fan speed condition.

public://2024-02/Asset 10 (2).png

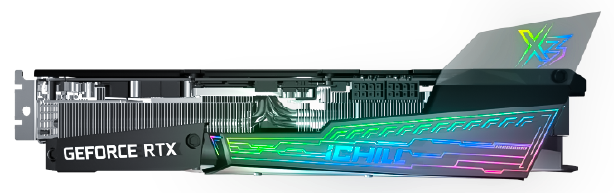

ACRYLIC RGB TAIL FIN

The iCHILL X3 tail fin is a module that can be added to the card for an increased RGB experience. It comes with two tail fins, one with logo and one blank for customization.

public://2024-02/Asset 11.png

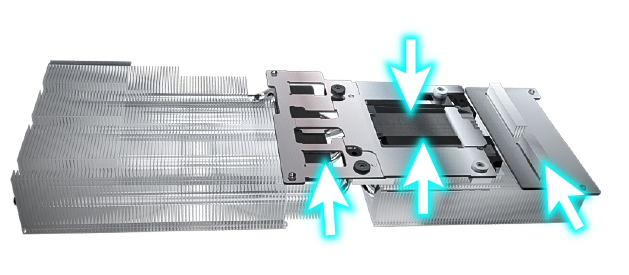

ULTRA-THIN COOLING FINS

Ultra-smooth DHT surface for GPU composing of 6 heat pipes with CNC process. Copper base for effective MOSFET and memory heat transfer.

public://2024-01/Asset 12_1.png

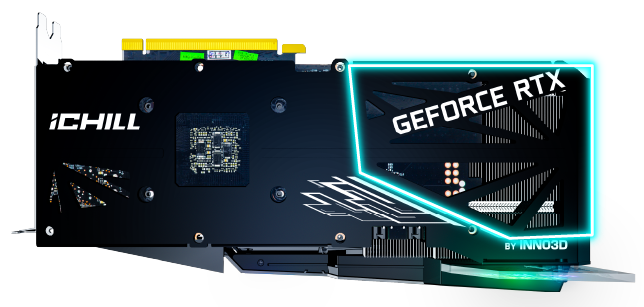

BACK PLATE DESIGN

Solid die casting back plate with openings for fast hot air release from fins.

public://2024-02/Asset 13.png

Privacy Policy | Contact Us

© 2022 NVIDIA Corporation. NVIDIA, the NVIDIA logo, GeForce, GeForce Experience, GeForce RTX™, G-SYNC, NVLink, and ShadowPlay are registered trademarks and/or trademarks of NVIDIA Corporation in the United States and other countries. All other trademarks and copyrights are the property of their respective owners.

© 2022 InnoVISION Multimedia Limited. All rights reserved. The INNO3D, INNO3D and iCHILL logo are the registered trademarks of InnoVISION Multimedia Ltd. in Asia, Europe and / or other countries. All other company and / or product names may be trademarks or registered trademarks of their respective owners.


footer (2)

The terms HDMI and HDMI High-Definition Multimedia Interface, and the HDMI Logo are trademarks or registered trademarks of HDMI Licensing Administrator, Inc.

YOU MAY BE INTERESTED IN

INNO3D GEFORCE RTX 3070 ICHILL X4
INNO3D GEFORCE RTX™ 3070 ICHILL X4
C30704-08D6X-1710VA35
product image
INNO3D GEFORCE RTX™ 3090 ICHILL FROSTBITE
C3090-246XX-1880FB
Datasheet:
GPU Engine Specs
GPU Engine Specs
CUDA Cores
5888
Boost Clock (MHz)
1785
Base Clock (MHz)
1500
Thermal and Power Spec
Thermal and Power Spec
Minimum System Power Requirement (W)
650
Supplementary Power Connectors
8+8-pin
Memory Specs
Memory Specs
Memory Clock
14Gbps
Standard Memory Config
8GB
Memory Interface
GDDR6
Memory Interface Width
256-bit
Memory Bandwidth (GB/sec)
448
Feature Support
Feature Support
Real-Time Ray Tracing
Yes
Ray Tracing Cores
2nd Generation
Tensor Cores
3rd Generation
NVIDIA Architecture
Ampere
Microsoft DirectX
12 Ultimate
NVIDIA DLSS
Yes
PCI Express Gen 4
Yes
NVIDIA GeForce Experience
Yes
NVIDIA Ansel
Yes
NVIDIA FreeStyle
Yes
Bus Support
PCI-E 4.0 X16
NVIDIA ShadowPlay
Yes
OS Certification
Windows 10, Linux, FreeBSDx86
NVIDIA Highlights
Yes
NVIDIA G-SYNC™-Ready
Yes
Game Ready Drivers
Yes
NVIDIA Studio Drivers
Yes
NVIDIA GPU Boost™
Yes
Vulkan API
Yes
OpenGL
4.6
DisplayPort 1.4a
Yes
NVIDIA Encoder
7th Generation
NVIDIA Decoder
5th Generation
HDMI 2.1a
Yes
Accessories
Accessories
Installation Guide
Yes
Power Guide
Yes
Graphics Card Stand
-
Graphics Card Dimensions:
Graphics Card Dimensions
Length
300mm
Height
135mm
Width
3-slot
Display Support
Display Support
Multi Monitor
Yes
Maxmium Digital Resolution
7680x4320
HDCP
2.3
Standard Display Connectors
HDMI 2.1, 3x DisplayPort 1.4a
