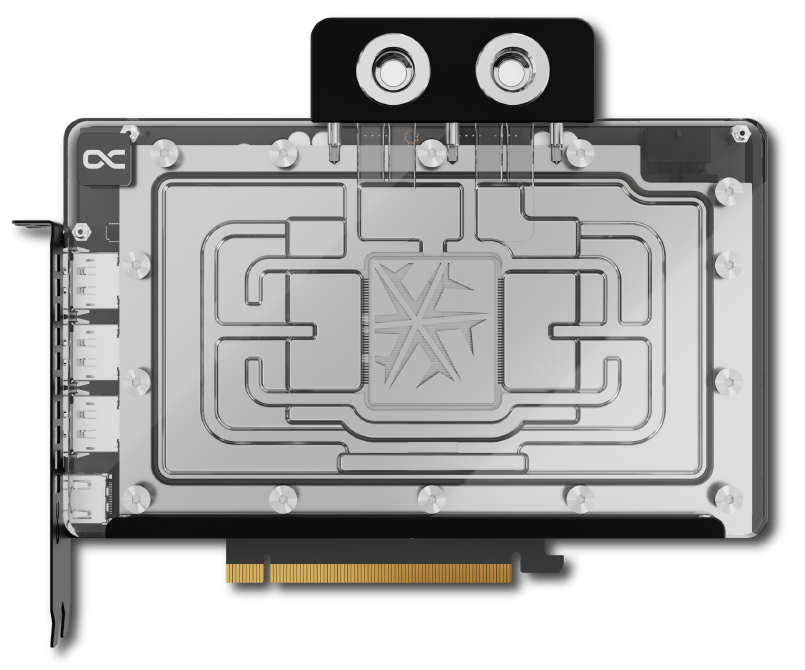

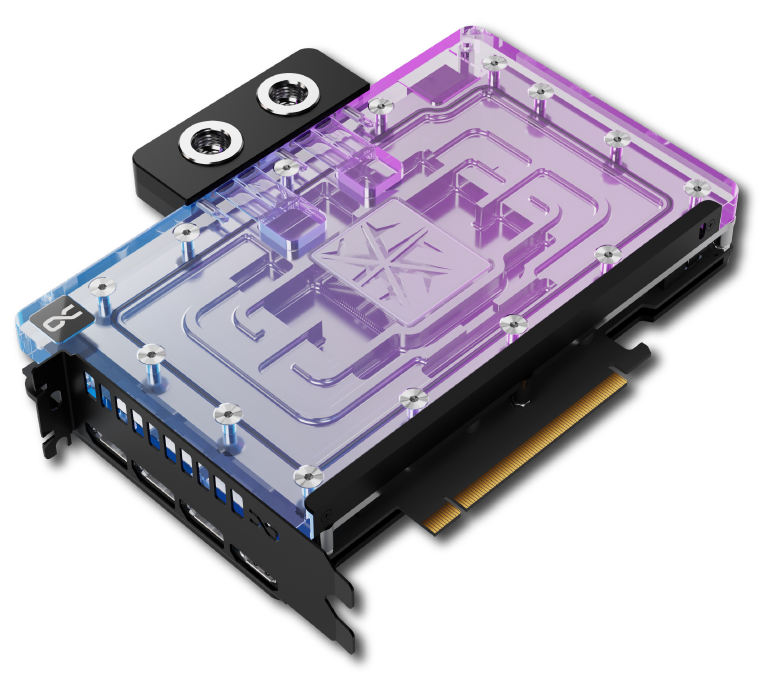

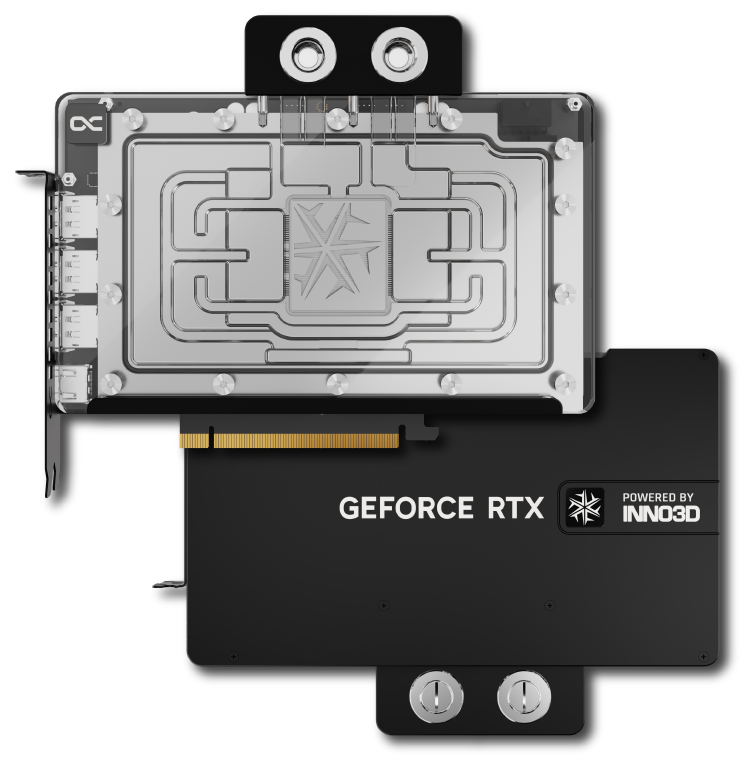

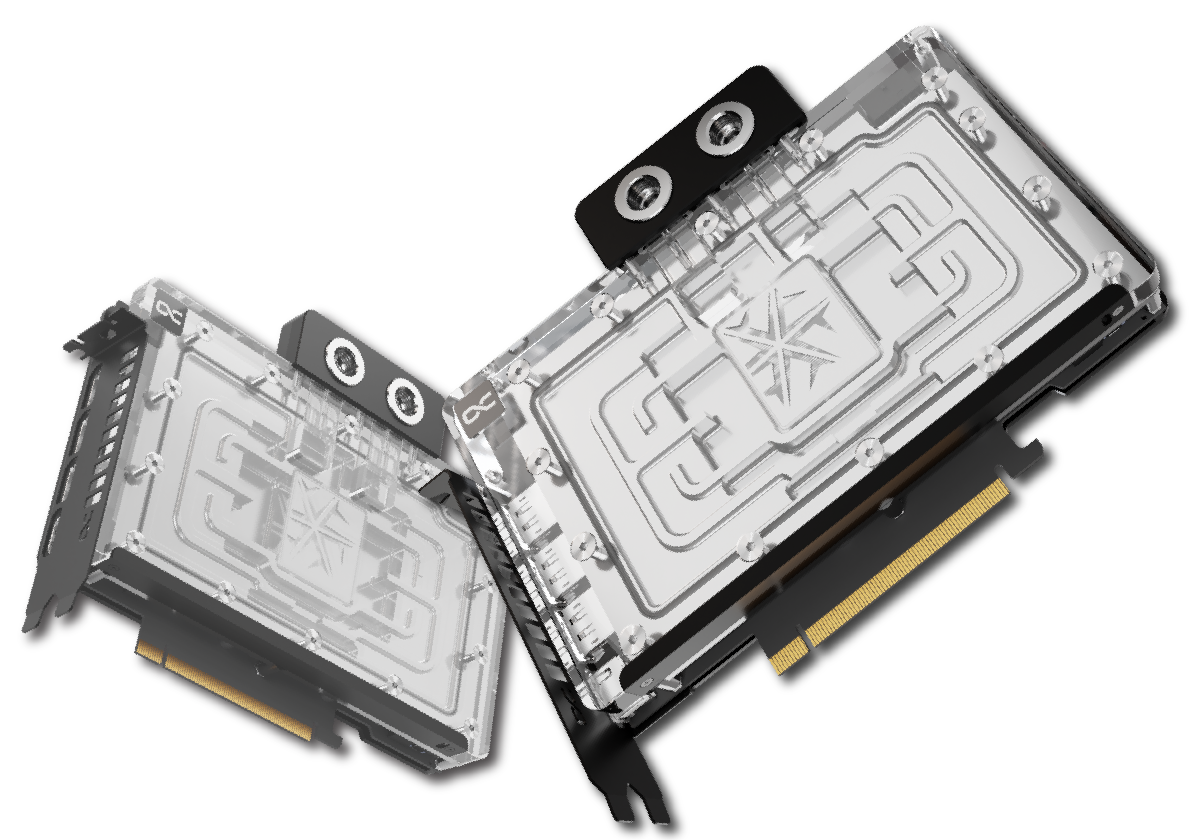

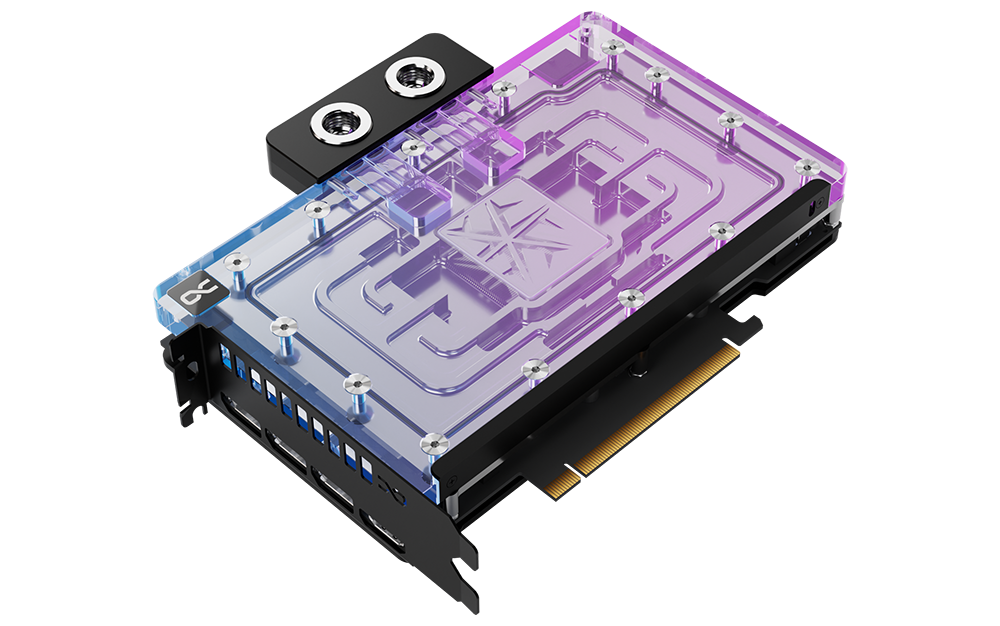

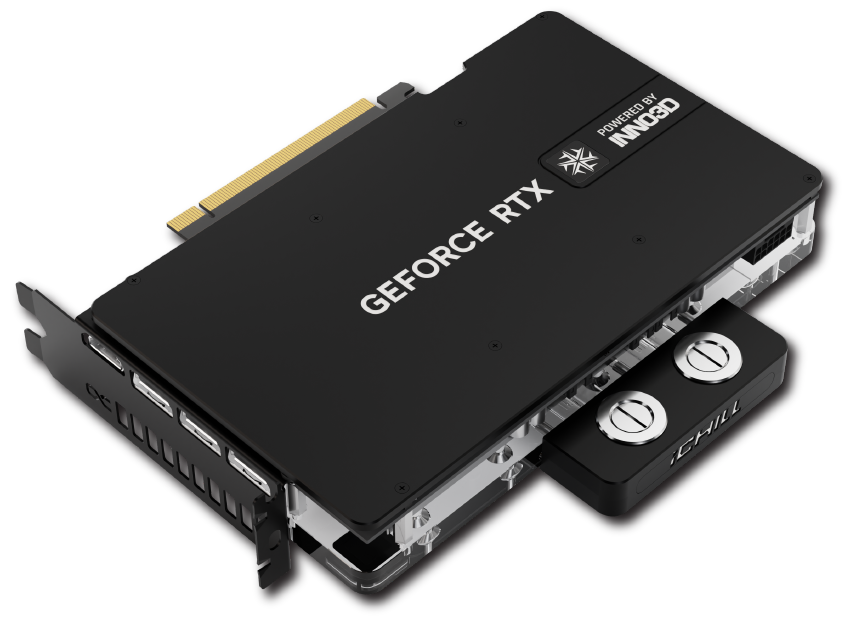

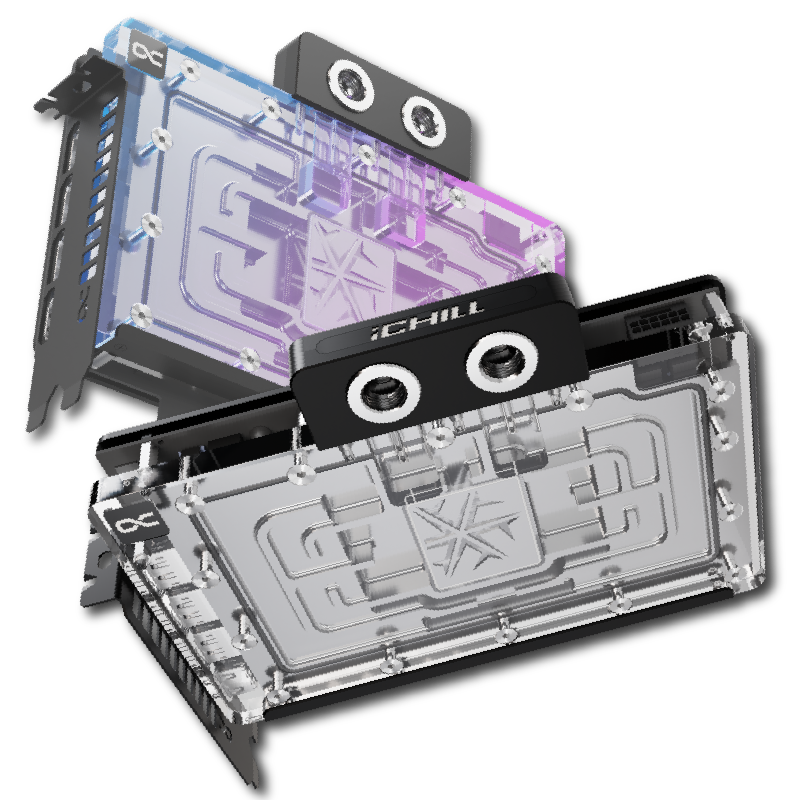

INNO3D GeForce RTX™ 5090 iCHILL FROSTBITE
INNO3D GeForce RTX™ 5090 iCHILL FROSTBITE
Datasheet:
GPU Engine Specs
GPU Engine Specs
CUDA Cores
21760
Boost Clock (MHz)
2467
Base Clock (MHz)
2017
Thermal and Power Spec
Thermal and Power Spec
Minimum System Power Requirement (W)
1000W
Supplementary Power Connectors
4x PCIe 8-pin cables (adapter in box) OR 1x 600 W PCIe Gen 5 cable
Memory Specs
Memory Specs
Memory Clock
28Gbps
Standard Memory Config
32GB
Memory Interface
GDDR7
Memory Interface Width
512-bit
Memory Bandwidth (GB/sec)
1792 GB/sec
Feature Support
Feature Support
Real-Time Ray Tracing
Yes
Ray Tracing Cores
4th Generation, 318 TFLOPS
Tensor Cores
5th Generation, 3352 AI TOPS
NVIDIA Architecture
Blackwell
Microsoft DirectX
12 Ultimate
NVIDIA DLSS
4
NVIDIA Ansel
Yes
NVIDIA FreeStyle
Yes
Bus Support
PCI Express Gen 5
NVIDIA ShadowPlay
Yes
OS Certification
Windows 11 / 10, Linux, FreeBSDx86
NVIDIA Highlights
Yes
NVIDIA G-SYNC™-Ready
Yes
Game Ready Drivers
Yes
NVIDIA Studio Drivers
Yes
NVIDIA GPU Boost™
Yes
Vulkan API
1.4
OpenGL
4.6
NVIDIA Encoder
3x Ninth Generation
NVIDIA Decoder
2x Sixth Generation
Accessories
Accessories
Graphics Card Dimensions:
Graphics Card Dimensions
Length
204mm
Height
161mm
Width
34mm
Display Support
Display Support
Multi Monitor
up to 4
Maxmium Digital Resolution
4K at 480Hz or 8K at 120Hz with DSC
HDCP
2.3
Standard Display Connectors
3x DisplayPort 2.1b, 1x HDMI 2.1b
