N309T3-246XX-1890VA46

INNO3D GEFORCE RTX™ 3090 TI 24GB X3 OC

DirectX Icon
INNO3D GEFORCE RTX™ 3090 TI 24GB X3 OC

THE WAIT IS OVER FOR INNO3D® GEFORCE

RTX 3090 Ti X3 OC

INNO3D® announces the highly anticipated INNO3D NVIDIA® GeForce RTX™ 3090 Ti graphics cards that's equipped with the INNO3D X3 0C.


The GeForce RTX™ 3090 Ti and 3090 are big ferocious GPUs (BFGPUs) with TITAN class performance. Powered by Ampere-NVIDIA's 2nd gen RTX™ architecture-they double down on ray tracing and Al performance with enhanced Ray Tracing Cores, Tensor Cores, and new streaming multiprocessors. Plus, they feature a staggering 24GB of G6X memory, all to deliver the ultimate experience for gamers and creators.

NVIDIA AMPERE ARCHITECTURE

Ampere

2ND GENERATION

RT CORES

2X THROUGHPUT

3RD GENERATION

TENSOR CORES

UP TO 2X THROUGHPUT

NEW

SM

2X FP32 THROUGHPUT

DLSS bg

DLSS AI ACCELERATION

MAX FPS. MAX QUALITY. POWERED BY AI.

NVIDIA DLSS is groundbreaking AI rendering that boosts frame rates with uncompromised image quality using the dedicated AI processing Tensor Cores on GeForce RTX™. This gives you the performance headroom to crank up settings and resolutions for an incredible visual experience. The AI revolution has arrived to gaming.



*Footage captured on RTX™ 2060 at 3840x2160 max settings.

RAY TRACING

Ray tracing is the holy grail of gaming graphics, simulating the physical behavior of light to bring real-time, cinematic-quality rendering to even the most visually intense games.

VICTORY MEASURED IN MILLISECONDS

NVIDIA Reflex delivers the ultimate competitive advantage. The lowest latency. The best responsiveness. Powered by GeForce RTX™ 30 Series GPUs and NVIDIA® G-SYNC® monitors. Acquire targets faster, react quicker and increase aim precision through a revolutionary suite of technologies to measure and optimize system latency for competitive games.

public://2024-01/Asset 1_25.png

UP YOUR

CREATIVE GAME

Take your creative projects to a new level with GeForce RTX™ 30 Series GPUs. Delivering AI-acceleration in top creative apps. Backed by the NVIDIA Studio platform of dedicated drivers and exclusive tools. And built to perform in record time. Whether rendering complex 3D scenes, editing 8K video, or livestreaming with the best encoding and image quality, GeForce RTX™ GPUs give you the performance to create your best.

public://2023-12/INNO3D GeForce RTX 3060 Twin X2 - 08.jpg

STREAM LIKE A BOSS

Steal the show with incredible graphics and smooth, stutter-free live streaming. Next-generation hardware encoding and decoding combine to show off all your best moments in exquisite detail. And the all-new NVIDIA Broadcast app takes your livestreams to the next level with powerful AI capabilities to improve audio and video quality with effects like virtual background, webcam auto frame, and microphone noise removal. GeForce RTX™ 30 Series GPUs deliver the performance and image quality necessary to give your audience your best—every time.

public://2024-01/Asset 2_21.png
bg

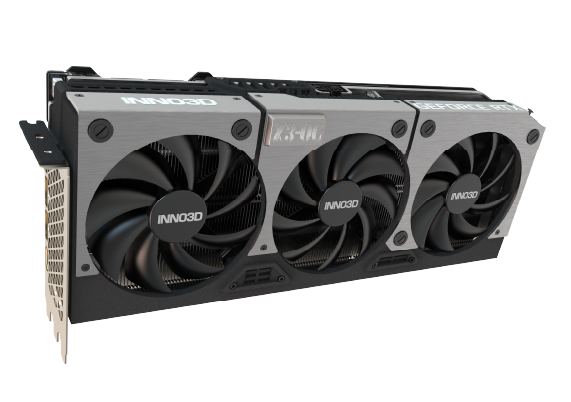

GIGANTIC COOLER WITH TRIPLE FAN

The X3 / OC is powered by triple 100mm fans and high quality bearings that allows 24/7 operation to keep the cooling at optimal level.
It also has scythe fan blades to maximise airflow and is optimised to operate in low fan speed conditions.

public://2024-02/3090 Ti X3 OC Gigantic cooler with triple fan.png

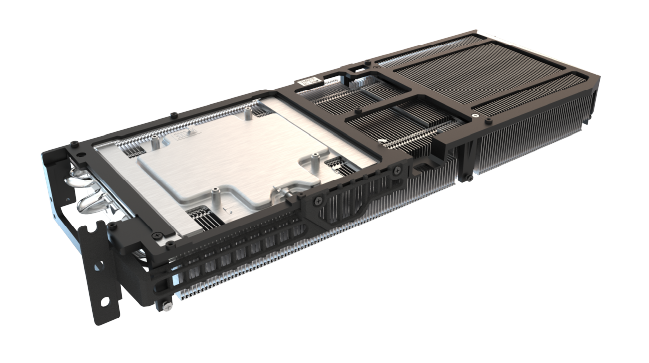

HEATSINK DESIGN

HUGE VAPOUR CHAMBER

  • 2X Better thermal conductivity than copper base

  • Full coverage for GPU and memory

public://2024-02/3090 Ti X3 OC huge vapour chamber.png

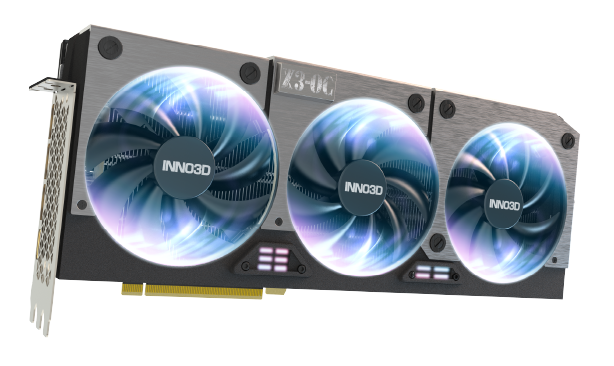

PROGRAMMABLE RGB

Supports Aura Sync, Mystic Light and RGB Fusion.

public://2024-02/3090 Ti X3 OC programmable rgb.png

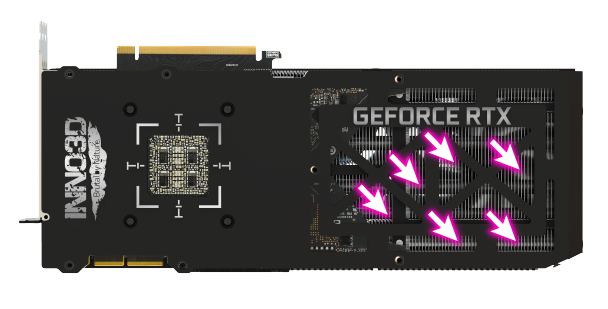

BACK PLATE DESIGN

The INNO3D back plate reinforces the graphics card and has openings for fast hot air release from fins.

public://2024-02/3090 Ti X3 OC back plate design.png

Privacy Policy | Contact Us

© 2022 NVIDIA Corporation. NVIDIA, the NVIDIA logo, GeForce, GeForce Experience, GeForce RTX™, G-SYNC, NVLink, and ShadowPlay are registered trademarks and/or trademarks of NVIDIA Corporation in the United States and other countries. All other trademarks and copyrights are the property of their respective owners.

© 2022 InnoVISION Multimedia Limited. All rights reserved. The INNO3D, INNO3D and iCHILL logo are the registered trademarks of InnoVISION Multimedia Ltd. in Asia, Europe and / or other countries. All other company and / or product names may be trademarks or registered trademarks of their respective owners.


footer (2)

The terms HDMI and HDMI High-Definition Multimedia Interface, and the HDMI Logo are trademarks or registered trademarks of HDMI Licensing Administrator, Inc.

YOU MAY BE INTERESTED IN

INNO3D GEFORCE RTX 3070 ICHILL X3
INNO3D GEFORCE RTX™ 3070 ICHILL X3
C30703-08D6X-1710VA38
INNO3D GEFORCE RTX 3060 TWIN X2 OC
INNO3D GEFORCE RTX™ 3060 TWIN X2 OC
N30602-12D6X-11902120
Datasheet:
GPU Engine Specs
GPU Engine Specs
CUDA Cores
10752
Boost Clock (MHz)
1890
Base Clock (MHz)
1560
Thermal and Power Spec
Thermal and Power Spec
Minimum System Power Requirement (W)
1000
Supplementary Power Connectors
12 + 4-pin
Memory Specs
Memory Specs
Memory Clock
21Gbps
Standard Memory Config
24GB
Memory Interface
GDDR6X
Memory Interface Width
384-bit
Memory Bandwidth (GB/sec)
1008
Feature Support
Feature Support
Real-Time Ray Tracing
Yes
Ray Tracing Cores
2nd Generation
Tensor Cores
3rd Generation
NVIDIA Architecture
Ampere
Microsoft DirectX
12 Ultimate
NVIDIA DLSS
Yes
PCI Express Gen 4
Yes
NVIDIA GeForce Experience
Yes
NVIDIA Ansel
Yes
NVIDIA FreeStyle
Yes
Bus Support
PCI-E 4.0 X16
NVIDIA ShadowPlay
Yes
OS Certification
Windows 10, Linux, FreeBSDx86
NVIDIA Highlights
Yes
NVIDIA G-SYNC™-Ready
Yes
Game Ready Drivers
Yes
NVIDIA Studio Drivers
Yes
NVIDIA GPU Boost™
Yes
Vulkan API
Yes
OpenGL
4.6
DisplayPort 1.4a
Yes
NVIDIA Encoder
7th Generation
NVIDIA Decoder
5th Generation
HDMI 2.1a
Yes
Accessories
Accessories
Installation Guide
Yes
Power Guide
Yes
Graphics Card Stand
-
Graphics Card Dimensions:
Graphics Card Dimensions
Length
330mm
Height
140mm
Width
3-slot
Display Support
Display Support
Multi Monitor
Yes
Maxmium Digital Resolution
7680x4320
HDCP
2.3
Standard Display Connectors
HDMI 2.1, 3x DisplayPort 1.4a
product image
product image
product image
product image
product image
product image
